MOBILE
|
|
Mobile module
|
4G (LTE) – Cat 12 up to 600 Mbps, 3G – up to 42 Mbps
|
|
SIM/mobile module switch
|
2 SIM cards, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
|
|
Status
|
Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID,
|
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto replay
|
|
Black/White list (planned)
|
Operator black/white list
|
|
Multiple PDN
|
Possibility to use different PDNs for multiple network access and services
|
|
Band management
|
Band lock, Used band status display
|
|
APN
|
Auto APN
|
|
Bridge mode
|
Direct connection (bridge) between mobile ISP and device on LAN
|
|
WIRELESS
|
|
Wireless mode
|
802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
|
|
WiFi security
|
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
|
|
ESSID
|
ESSID stealth mode
|
|
WiFi users
|
up to 150 simultaneous connections
|
|
Wireless Hotspot
|
Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
|
|
ETHERNET
|
|
WAN
|
1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
|
|
LAN
|
4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
|
|
BLUETOOTH
|
|
Bluetooth 4.0
|
Bluetooth low energy (LE) for short range communication
|
|
NETWORK
|
|
Routing
|
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
|
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA
|
|
VoIP passthrough support
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
|
|
Connection monitoring
|
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
|
|
Firewall
|
Port forwards, traffic rules, custom rules
|
|
DHCP
|
Static and dynamic IP allocation, DHCP Relay, Relayd
|
|
QoS / Smart Queue Management (SQM)
|
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
|
|
DDNS
|
Supported >25 service providers, others can be configured manually
|
|
Network backup
|
VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover
|
|
Load balancing
|
Balance Internet traffic over multiple WAN connections
|
|
SSHFS
|
Possibility to mount remote file system via SSH protocol
|
|
SECURITY
|
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates
|
|
Firewall
|
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
|
|
Attack prevention
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
|
|
VLAN
|
Port and tag based VLAN separation
|
|
Mobile quota control
|
Custom data limits for both SIM cards
|
|
WEB filter
|
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
|
|
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter
|
|
VPN
|
|
OpenVPN
|
Multiple clients and a server can run simultaneously, 12 encryption methods
|
|
OpenVPN Encryption
|
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
|
|
IPsec
|
IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
|
|
GRE
|
GRE tunnel
|
|
PPTP, L2TP
|
Client/Server instances can run simultaneously, L2TPv3 support
|
|
Stunnel
|
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
|
|
DMVPN
|
Method of building scalable IPsec VPNs
|
|
SSTP
|
SSTP client instance support
|
|
ZeroTier
|
ZeroTier VPN client support
|
|
WireGuard
|
WireGuard VPN client and server support
|
|
MODBUS TCP SLAVE
|
|
ID filtering
|
Respond to one ID in range [1;255] or any
|
|
Allow remote access
|
Allow access through WAN
|
|
Custom registers
|
Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality
|
|
MODBUS TCP MASTER
|
|
Supported functions
|
01, 02, 03, 04, 05, 06, 15, 16
|
|
Supported data formats
|
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
|
|
MQTT GATEWAY
|
|
Gateway
|
Allows sending commands and receiving data from MODBUS Master through the MQTT broker
|
|
DNP3
|
|
Supported modes
|
TCP Master, DNP3 Outstation
|
|
DATA TO SERVER
|
|
Protocols
|
HTTP(S), MQTT, Azure MQTT, Kinesis
|
|
IoT PLATFORMS
|
|
Clouds of things
|
Allows monitoring of: Device data, Mobile data, Network info, Availability
|
|
ThingWorx
|
Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
|
|
Cumulocity
|
Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
|
|
Azure IoT Hub
|
Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
|
|
MONITORING & MANAGEMENT
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
|
|
FOTA
|
Firmware update from server, automatic notification
|
|
SSH
|
SSH (v1, v2)
|
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
|
|
CALL
|
Reboot, Status, Mobile data on/off, Output on/off
|
|
TR-069
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
|
|
MQTT
|
MQTT Broker, MQTT publisher
|
|
SNMP
|
SNMP (v1, v2, v3), SNMP trap
|
|
JSON-RPC
|
Management API over HTTP/HTTPS
|
|
MODBUS
|
MODBUS TCP status/control
|
|
RMS
|
Teltonika Remote Management System (RMS)
|
|
SYSTEM CHARACTERISTICS
|
|
CPU
|
Quad-core ARM Cortex A7, 717 MHz
|
|
RAM
|
256 MB, DDR3
|
|
FLASH storage
|
256 MB, SPI Flash
|
|
FIRMWARE / CONFIGURATION
|
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup
|
|
FOTA
|
Update FW/configuration from server
|
|
RMS
|
Update FW/configuration for multiple devices at once
|
|
Keep settings
|
Update FW without losing current configuration
|
|
FIRMWARE CUSTOMIZATION
|
|
Operating system
|
RutOS (OpenWrt based Linux OS)
|
|
Supported languages
|
Busybox shell, Lua, C, C++
|
|
Development tools
|
SDK package with build environment provided
|
|
LOCATION TRACKING
|
|
GNSS
|
GPS, GLONASS, BeiDou, Galileo and QZSS
|
|
Coordinates
|
GNSS coordinates via WebUI, SMS, TAVL, RMS
|
|
NMEA
|
NMEA 0183
|
|
Server software
|
Supported server software: TAVL, RMS
|
|
Geofencing
|
Configurable multiple geofence zones
|
|
USB
|
|
Data rate
|
USB 2.0
|
|
Applications
|
Samba share, USB-to-serial
|
|
External devices
|
Possibility to connect external HDD, flash drive, additional modem, printer
|
|
Storage formats
|
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
|
|
INPUT/OUTPUT
|
|
Input
|
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
|
|
Output
|
1 x Digital Output, Open collector output, max output 30 V, 300 mA
|
|
Events
|
SMS, Email, RMS
|
|
I/O juggler
|
Allows to set certain I/O conditions to initiate event
|
|
POWER
|
|
Connector
|
4 pin industrial DC power socket
|
|
Input voltage range
|
9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
|
|
PoE (passive)
|
Passive PoE. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
|
|
Power consumption
|
Idle: <4 W, Max: <22 W
|
|
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
|
|

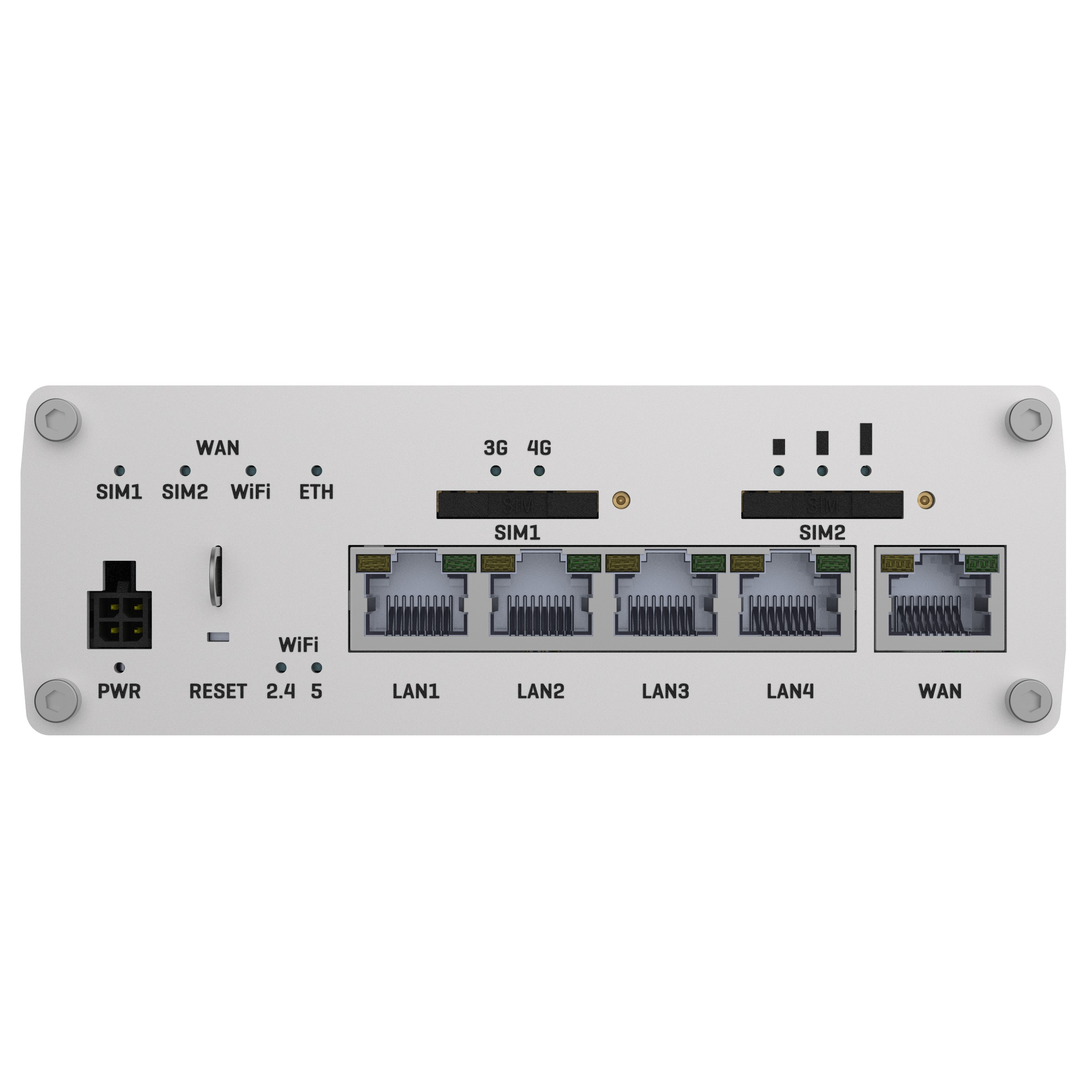

Ethernet
|
5 x RJ45 ports, 10/100/1000 Mbps
|
|
I/Os
|
1 x Digital Input, 1 x Digital Output on 4 pin power connector
|
|
Status LEDs
|
2 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
|
|
SIM
|
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
|
|
Power
|
1 x 4 pin DC connector
|
|
Antennas
|

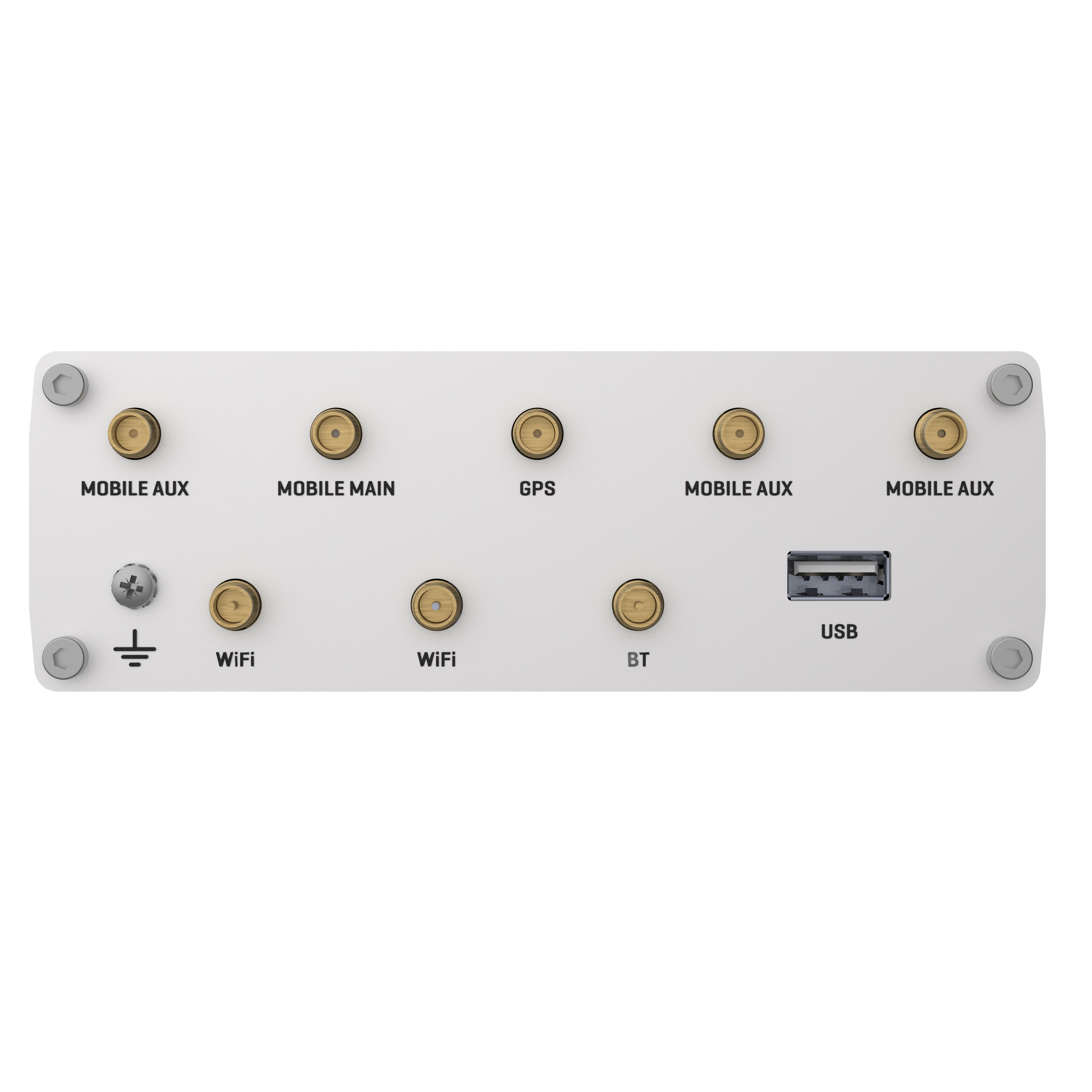

4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
|
|
USB
|
1 x USB A port for external devices
|
|
Reset
|
Reboot/User default reset/Factory reset button
|
|
Other
|
1 x Grounding screw
|
|

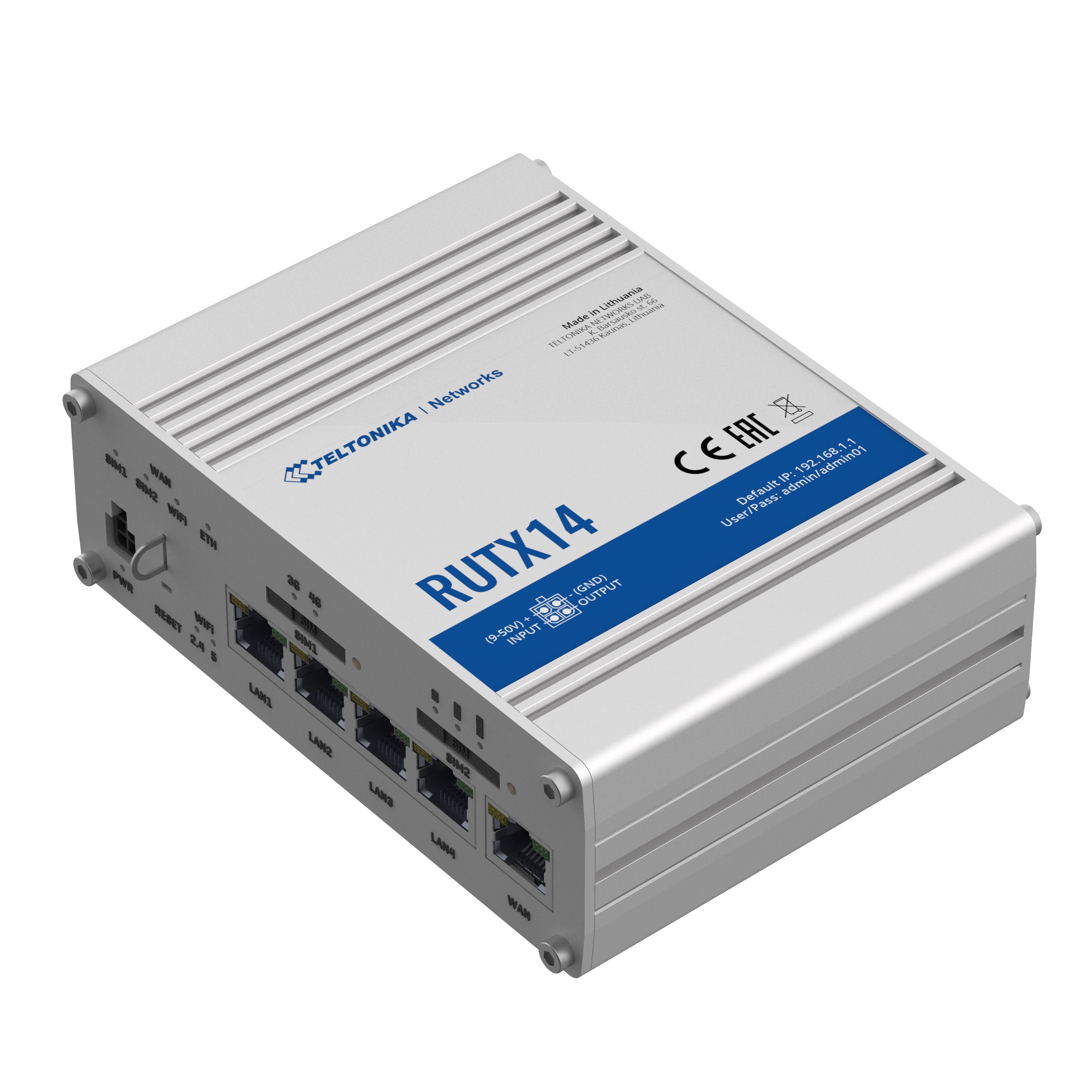

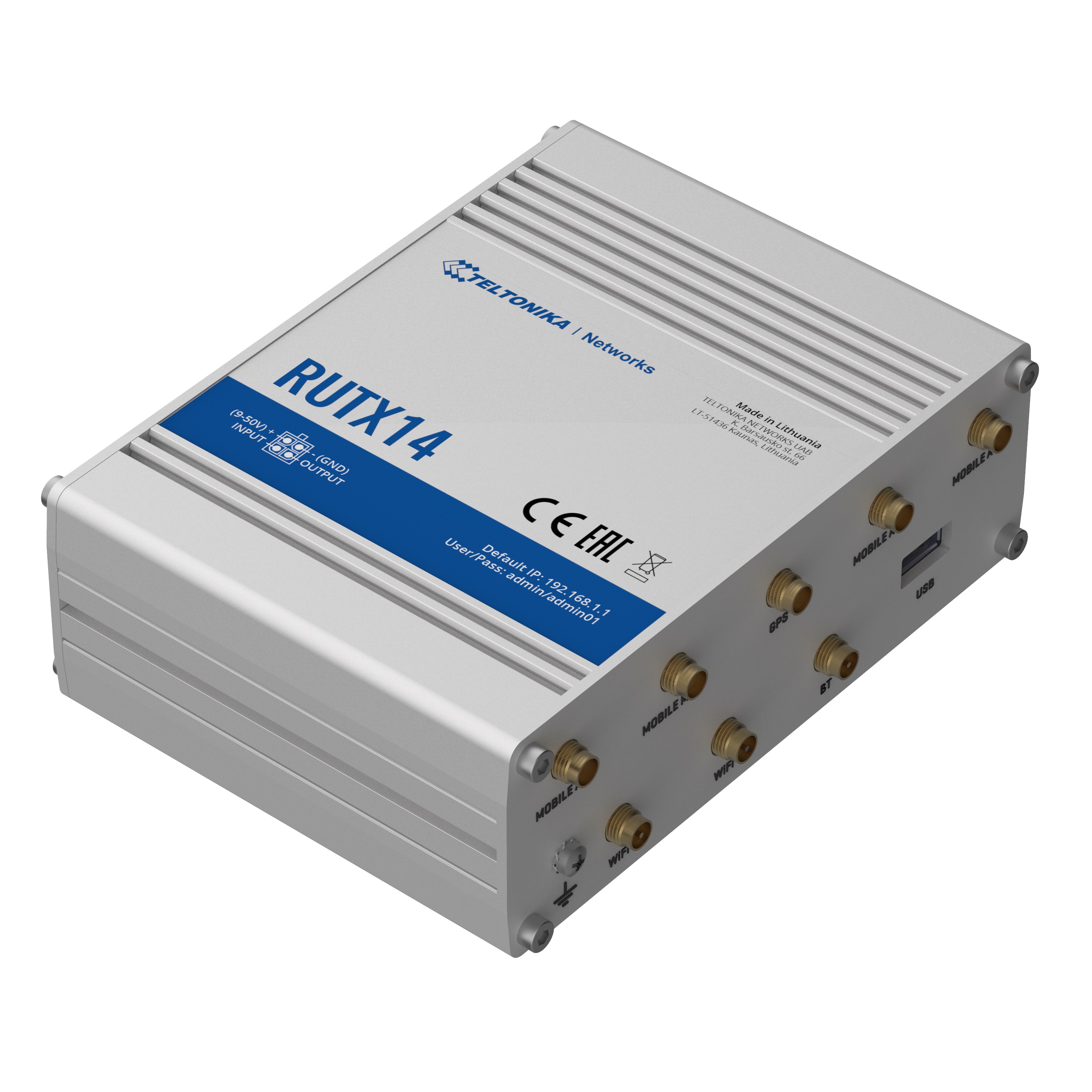

PHYSICAL SPECIFICATION
|
|
Casing material
|
Full aluminium housing
|
|
Dimensions (W x H x D)
|
132 x 44 x 95 mm
|
|
Weight
|
515 g
|
|
Mounting options
|

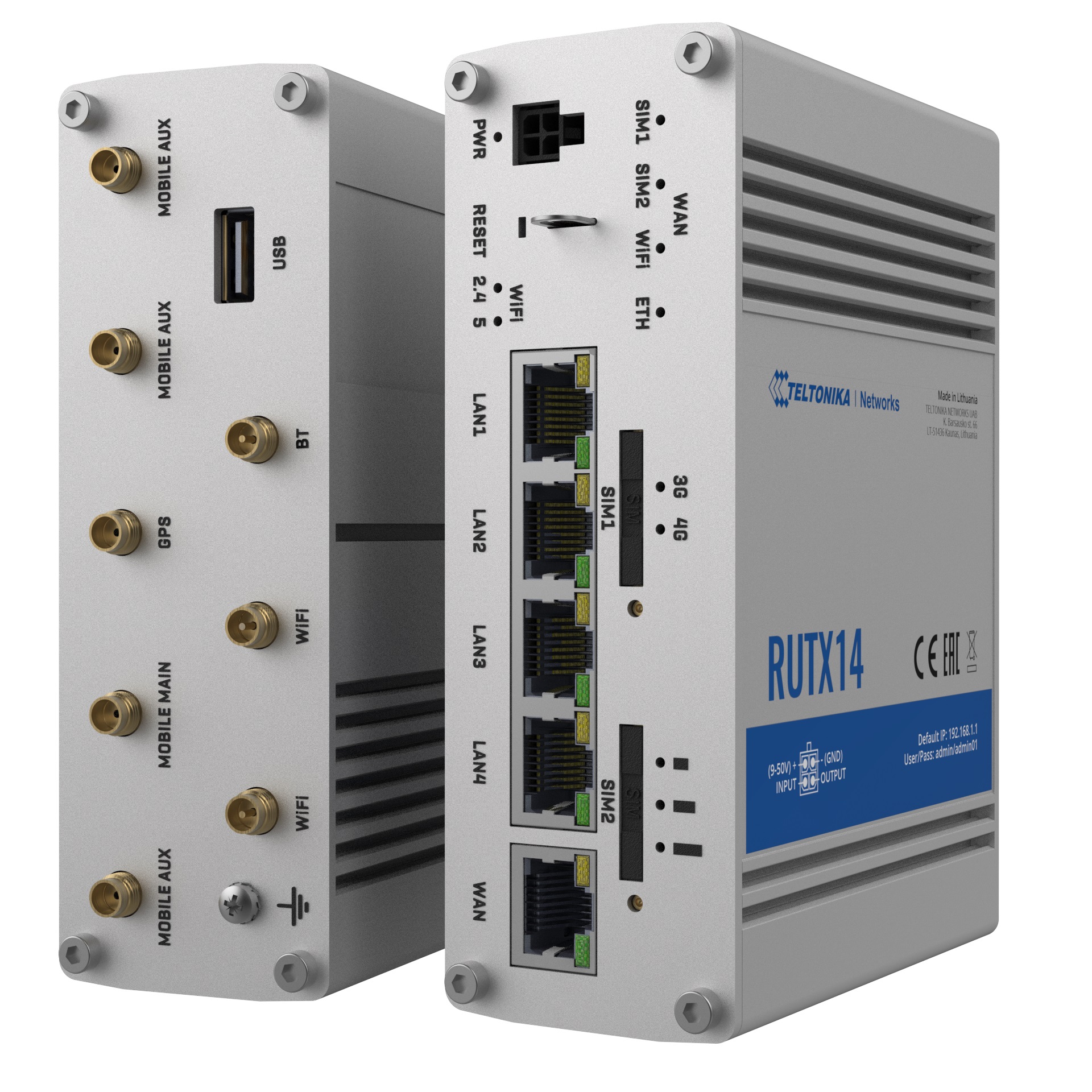

DIN rail (can be mounted on two sides), flat surface placement
|
|
OPERATING ENVIRONMENT
|
|
Operating temperature
|
-40 C to 75 C
|
|
Operating humidity
|
10 % to 90 % non-condensing
|
