Mobile module
|
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
|
|
Status
|
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
|
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
|
|
USSD
|
Supports sending and reading Unstructured Supplementary Service Data messages
|
|
Black/White list
|
Operator black/white list
|
|
Multiple PDN
|
Possibility to use different PDNs for multiple network access and services
|
|
Band management
|
Band lock, Used band status display
|
|
APN
|
Auto APN
|
|
Bridge
|
Direct connection (bridge) between mobile ISP and device on LAN
|
|
Passthrough
|
Router assigns its mobile WAN IP address to another device on LAN
|
|
|
|
|
LAN
|
1 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
|
|
|
|
|
Routing
|
Static routing
|
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
|
|
VoIP passthrough support
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
|
|
Connection monitoring
|
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
|
|
Firewall
|
Port forward, traffic rules, custom rules
|
|
DHCP
|
Static and dynamic IP allocation, DHCP Relay, Relayd
|
|
QoS / Smart Queue Management (SQM)
|
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
|
|
DDNS
|
Supported >25 service providers, others can be configured manually
|
|
Network backup
|
VRRP, Wired options, each of which can be used as an automatic Failover, Mobile
|
|
Load balancing
|
Balance Internet traffic over multiple WAN connections
|
|
SSHFS
|
Possibility to mount remote file system via SSH protocol
|
|
|
|
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
|
|
Firewall
|
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
|
|
Attack prevention
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
|
|
VLAN
|
Port and tag based VLAN separation
|
|
Mobile quota control
|
Custom data limits for SIM card
|
|
WEB filter
|
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
|
|
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter
|
|
|
|
|
OpenVPN
|
Multiple clients and a server can run simultaneously, 27 encryption methods
|
|
OpenVPN Encryption
|
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
|
|
IPsec
|
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
|
|
GRE
|
GRE tunnel, GRE tunnel over IPsec support
|
|
PPTP, L2TP
|
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
|
|
Stunnel
|
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
|
|
DMVPN
|
Method of building scalable IPsec VPNs
|
|
SSTP
|
SSTP client instance support
|
|
ZeroTier
|
ZeroTier VPN client support
|
|
WireGuard
|
WireGuard VPN client and server support
|
|
Tinc
|
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
|
|
|
|
|
ID range
|
Respond to one ID in range [1;255] or any
|
|
Allow Remote Access
|
Allow access through WAN
|
|
Custom registers
|
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
|
|
|
|
|
Supported functions
|
01, 02, 03, 04, 05, 06, 15, 16
|
|
Supported data formats
|
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
|
|
|
|
|
Protocol Support
|
The M-Bus interface can support up to 250 slave devices and can power up to 6 slave devices.
|
|
|
|
|
Protocol
|
HTTP(S), MQTT, Azure MQTT
|
|
|
|
|
MQTT Gateway
|
Allows sending commands and receiving data from MODBUS Master through MQTT broker
|
|
|
|
|
Supported modes
|
TCP Master, DNP3 Outstation
|
|
|
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
|
|
FOTA
|
Firmware update from server, automatic notification
|
|
SSH
|
SSH (v1, v2)
|
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
|
|
Call
|
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
|
|
TR-069
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
|
|
MQTT
|
MQTT Broker, MQTT publisher
|
|
SNMP
|
SNMP (v1, v2, v3), SNMP Trap
|
|
JSON-RPC
|
Management API over HTTP/HTTPS
|
|
MODBUS
|
MODBUS TCP status/control
|
|
RMS
|
Teltonika Remote Management System (RMS)
|
|
|
|
|
Cloud of Things
|
Allows monitoring of: Device data, Mobile data, Network info, Availability
|
|
ThingWorx
|
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
|
|
Cumulocity
|
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
|
|
Azure IoT Hub
|
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
|
|
|
|
|
CPU
|
ARM Cortex-A7 1.3 GHz
|
|
RAM
|
256 MB, DDR3
|
|
FLASH storage
|
512 MB, SPI Flash
|
|
|
|
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup
|
|
FOTA
|
Update FW
|
|
RMS
|
Update FW/configuration for multiple devices at once
|
|
Keep settings
|
Update FW without losing current configuration
|
|
|
|
|
Operating system
|
RutOS (OpenWrt based Linux OS)
|
|
Supported languages
|
Busybox shell, Lua, C, C++
|
|
Development tools
|
SDK package with build environment provided
|
|
|
|
|
Input
|
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
|
|
Output
|
1 x Digital Output, Open collector output, max output 30 V, 300 mA
|
|
Events
|
Email, RMS, SMS
|
|
I/O juggler
|
Allows to set certain I/O conditions to initiate event
|
|
|
|
|
Connector
|
4-pin industrial DC power socket
|
|
Input voltage range
|
12 – 30 VDC
|
|
PoE (passive)
|
Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC
|
|
Power consumption
|
Idle: 3 W, Max: 6 W
|
|
|
|
|

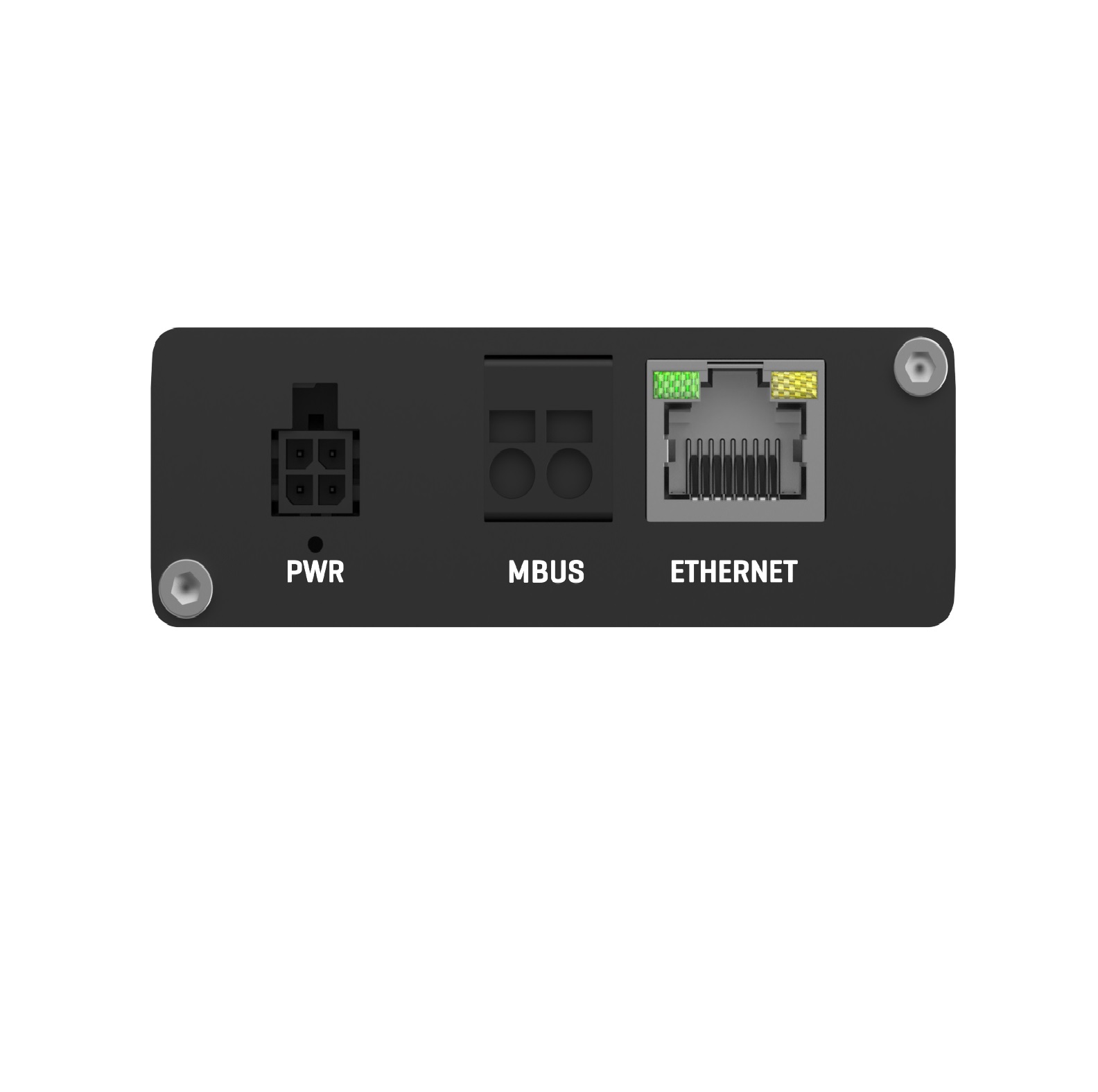

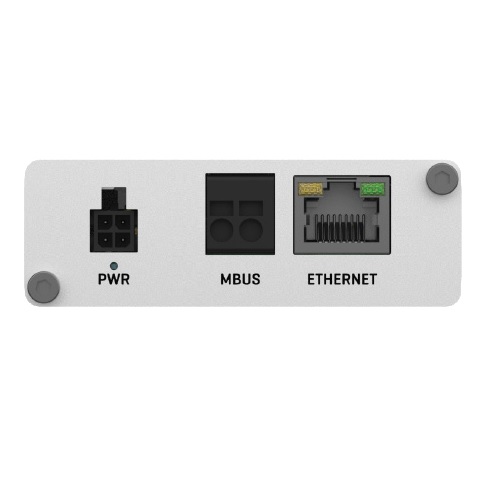

Ethernet
|
1 x RJ45 port, 10/100/1000 Mbps
|
|
I/O’s
|
1 x Digital Input, 1 x Digital Output on 4-pin power connector
|
|

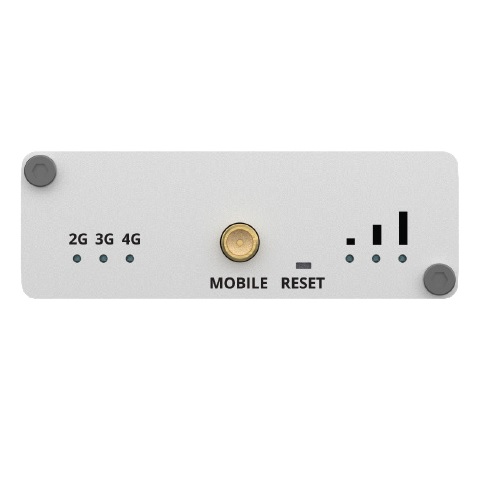

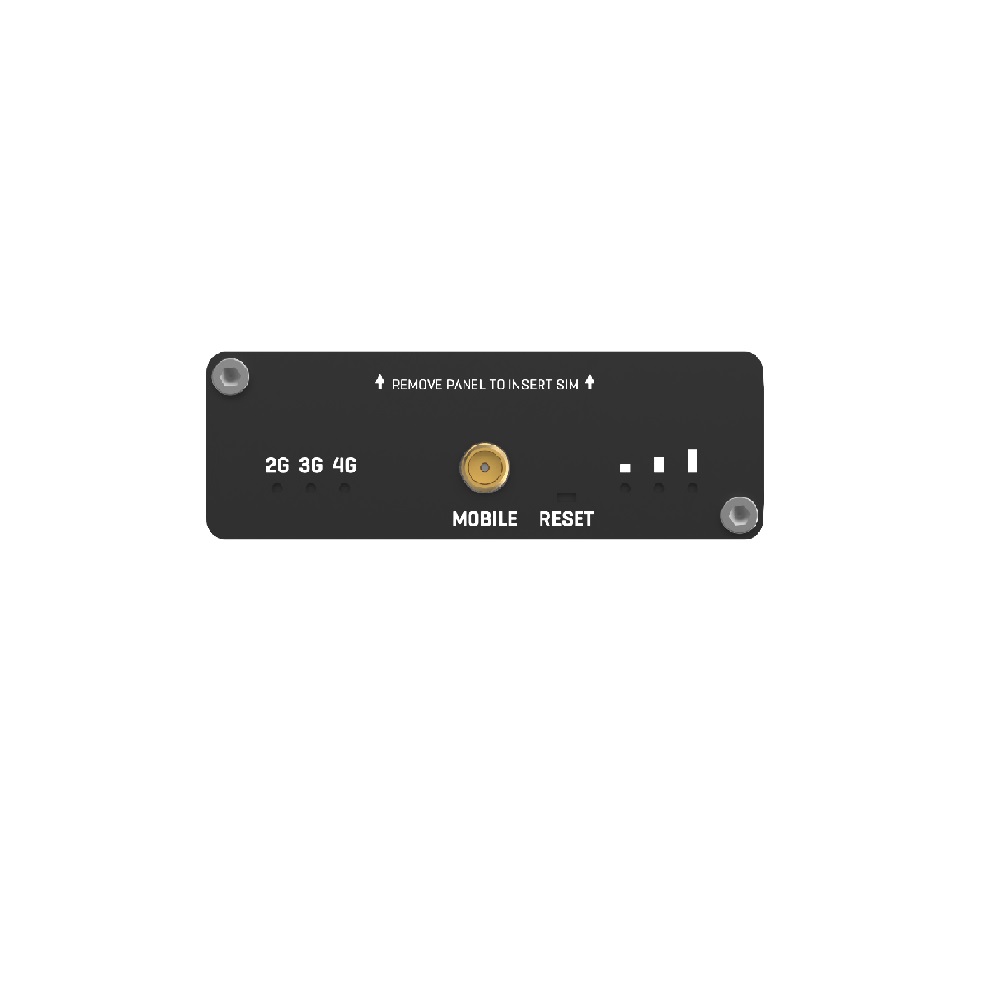

Status LEDs
|
3 x connection type status LEDs, 3 x connection strength LEDs, 1x Power LED
|
|
SIM
|
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
|
|
Power
|
1 x 4-pin power connector
|
|
Antennas
|
1 x SMA for LTE
|
|
Reset
|
Reboot/User default reset/Factory reset button
|
|
Mbus
|
1 x M-Bus Interface"
|
|
|
|
|
Casing material
|
Aluminum housing
|
|
Dimensions (W x H x D)
|
74.5 x 25 x 73 mm
|
|
Weight
|
145 g
|
|
Mounting options
|
DIN rail (can be mounted on two sides), flat surface placement
|
|
|
|
|
Operating temperature
|
-40 °C to 75 °C
|
|
Operating humidity
|
10% to 90% non-condensing
|
|
Ingress Protection Rating
|
IP30
|
REGULATORY & TYPE APPROVALS
|
|
|
Regulatory
|
CB, CE, UKCA, RoHS, REACH, WEEE
|
|
|
|
|
ESD
|
EN 61000-4-2:2009
|
|
RS
|
EN 61000-4-3:2006 + A1:2008 + A2:2010
|
|
EFT
|
EN 61000-4-4:2012
|
