ETHERNET |
LAN |
5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
POE |
PoE ports |
Port 1- 4 |
PoE standards |
802.3af and 802.3at |
PoE Max Power per Port (at PSE) |
30 W |
Total PoE Power Budget (at PSE) |
120 W |
PERFORMANCE SPECIFICATIONS |
Bandwidth (Non-blocking) |
10 Gbps |
Packet buffer |
128 KB |
MAC address table size |
2K entries |
POWER |
Connector |
4 pin industrial DC power socket |
Input voltage range |
7-57 VDC |
Input voltage range for PoE |
44-57 VDC |
Power consumption (idle/max no PoE/max) |
2 W/9 W/129 W |

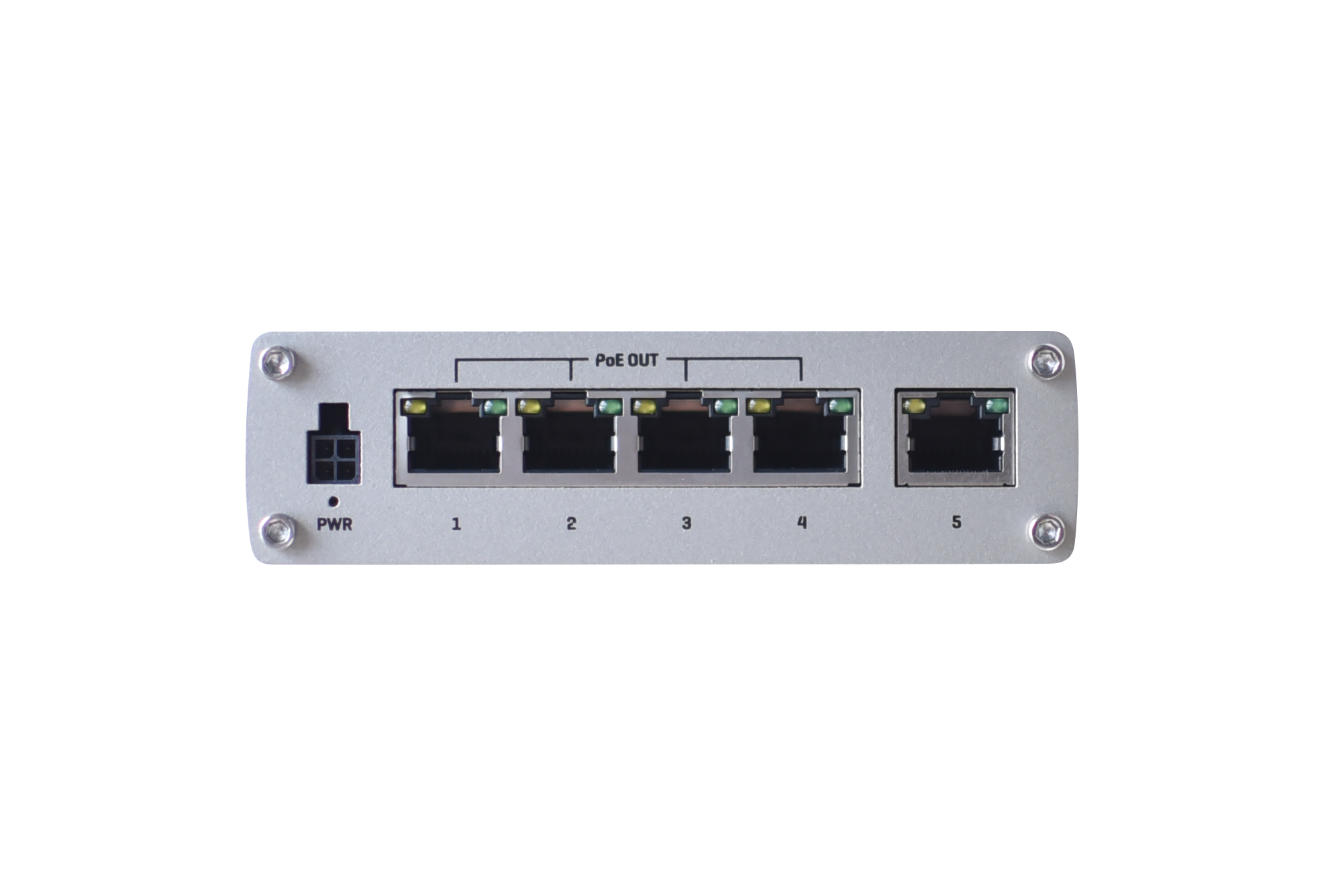

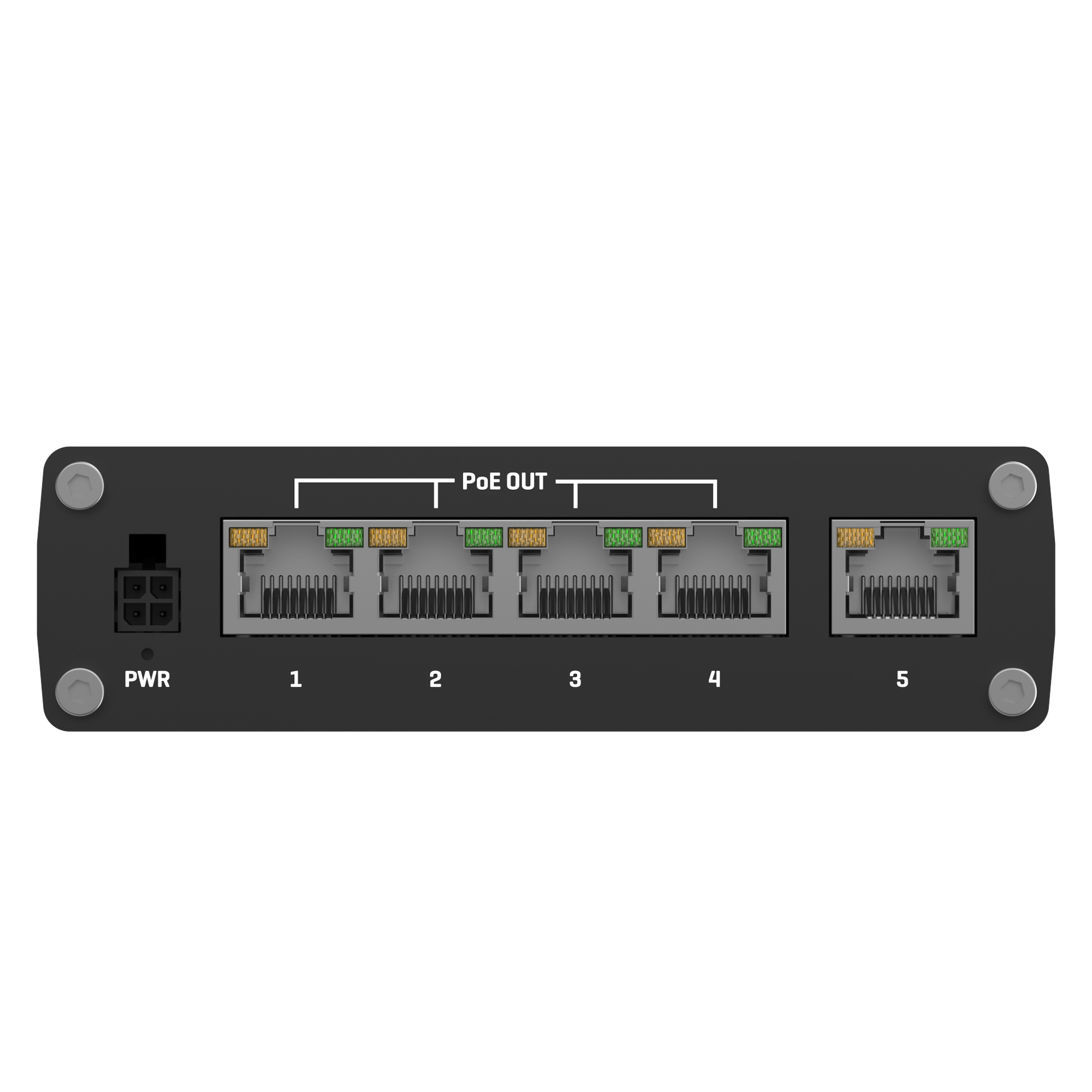

PHYSICAL INTERFACES (PORTS, LEDS) |
Ethernet |
5 x RJ45 ports, 10/100/1000 Mbps |
Status LED’s |
1 x Power LED, 10 x LAN status LED’s |
Power |
1 x 4 pin DC connector |
Ground |
1 x Grounding screw |
PHYSICAL SPECIFICATION |
Casing material |
Full aluminum housing |
Dimensions (W x H x D) |
115 x 32 x 95 mm |
Mounting |
DIN rail or wall mounting (additional kit needed), flat surface placement |
OPERATING ENVIRONMENT |
Operating temperature |
40 °C to +75 °C |
