LAN
|
5 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
|
PERFORMANCE SPECIFICATIONS
|
|
|
Bandwidth (Non-blocking)
|
1 Gbps
|
|
MAC address table size
|
2K entries
|
|
Jumbo frame support
|
2048 bytes
|
|
|
|
|
Connector
|
4-pin industrial DC power socket, 2-pin industrial DC power socket
|
|
Input voltage range
|
9-30 VDC
|
|
PoE (passive)
|
Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Passive PoE input on port No. 1
|
|
Power consumption
|
Idle: 0.3 W / Max: 0.9 W
|
PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM)
|
|
|

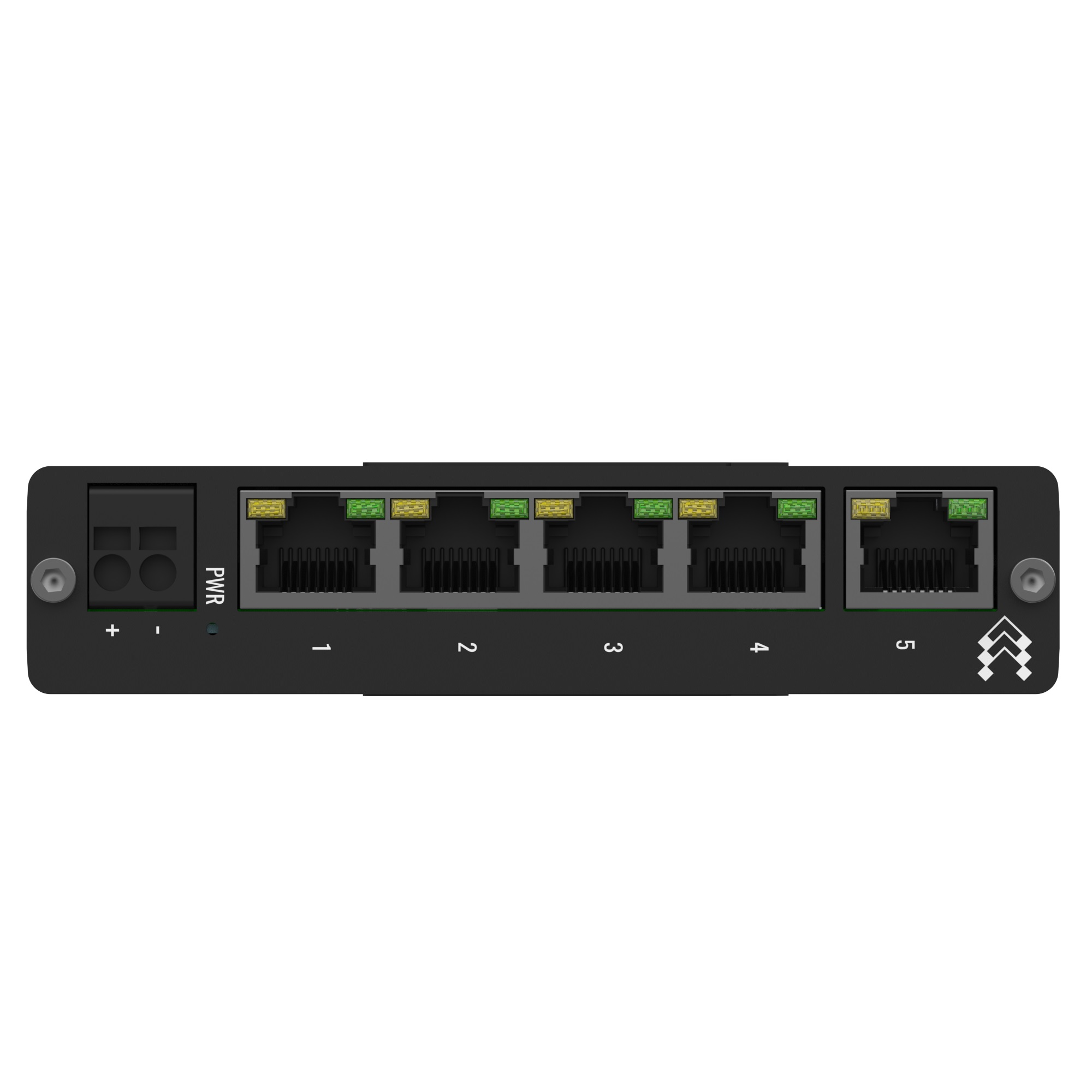

Ethernet
|
5 x RJ45 ports, 10/100 Mbps
|
|
Status LEDs
|
1 x Power LED, 10 x LAN status LEDs
|
|
Power
|
1 x 4 pin power connector, 1 x 2-pin industrial DC power socket
|
|
Other
|
1 x Grounding screw
|
|
|
|
|
Casing material
|
Aluminum housing
|
|
Dimensions (W x H x D)
|
113.1 x 27.4 x 80.5 mm
|
|
Weight
|
146.5 g
|
|

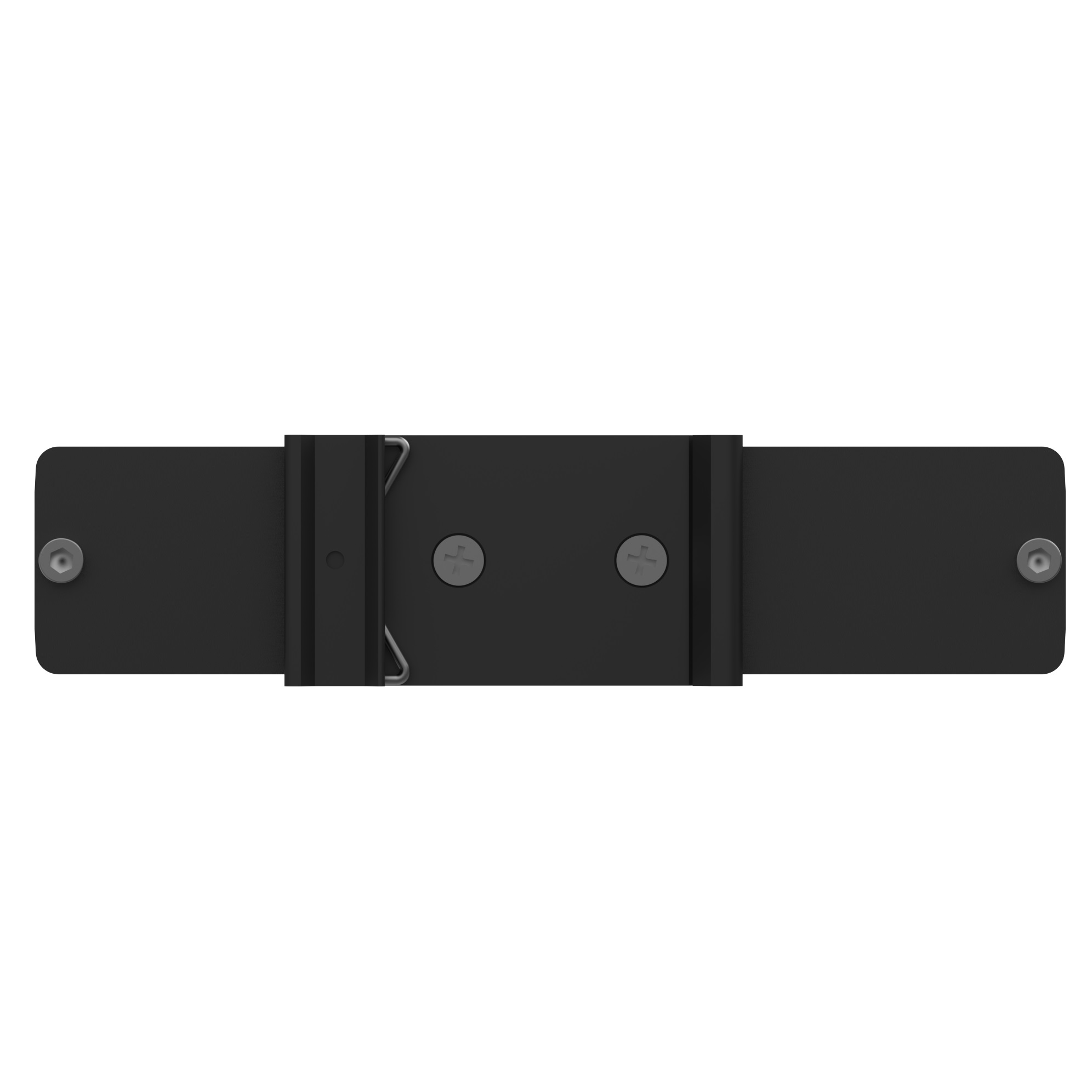

Mounting options
|
DIN rail or wall mounting (additional kit needed), flat surface placement
|
|
|
|
|
Operating temperature
|
-40 °C to 75 °C
|
|
Operating humidity
|
10% to 90% non-condensing
|
|
Ingress Protection Rating
|
IP30
|
REGULATORY & TYPE APPROVALS
|
|
|
Regulatory
|
CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
|
|
|
|
|
Standards
|
EN IEC 62368-1:2020+A11:2020
|
