5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL); 5G NSA Sub-6GHz: 3.4Gbps DL (4x4 MIMO)/ 550 Mbps UL (2x2); 4G (LTE-FDD) – LTE Cat 19 1.6Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL

Release 16

1 x 4-pin industrial DC power socket

1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max

USB Type-C: 5 VDC

Idle: < 5 W, Max: < 12 W

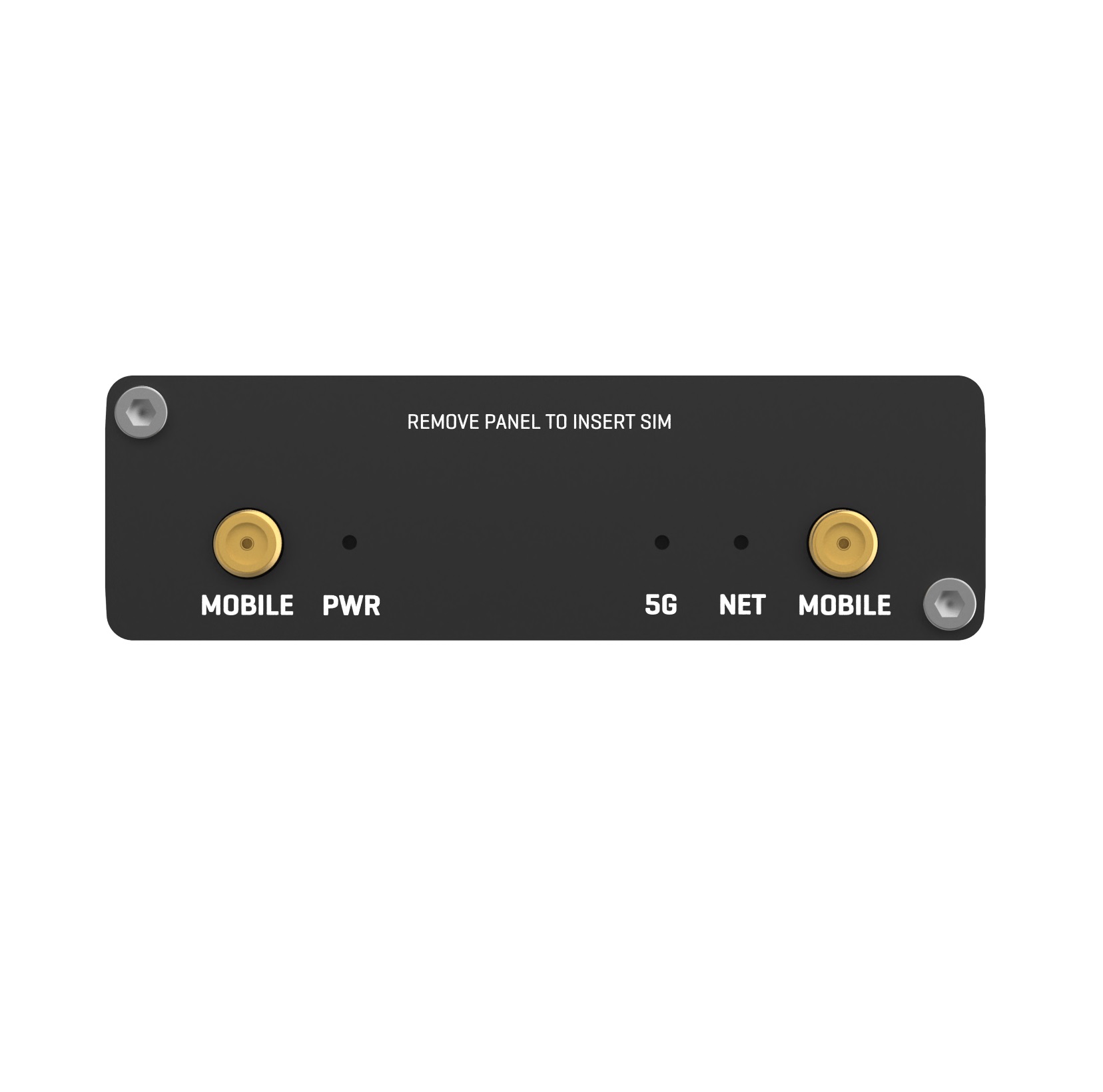

1 x Power LED, 1 x 5G LED, 1 x Network LED

1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

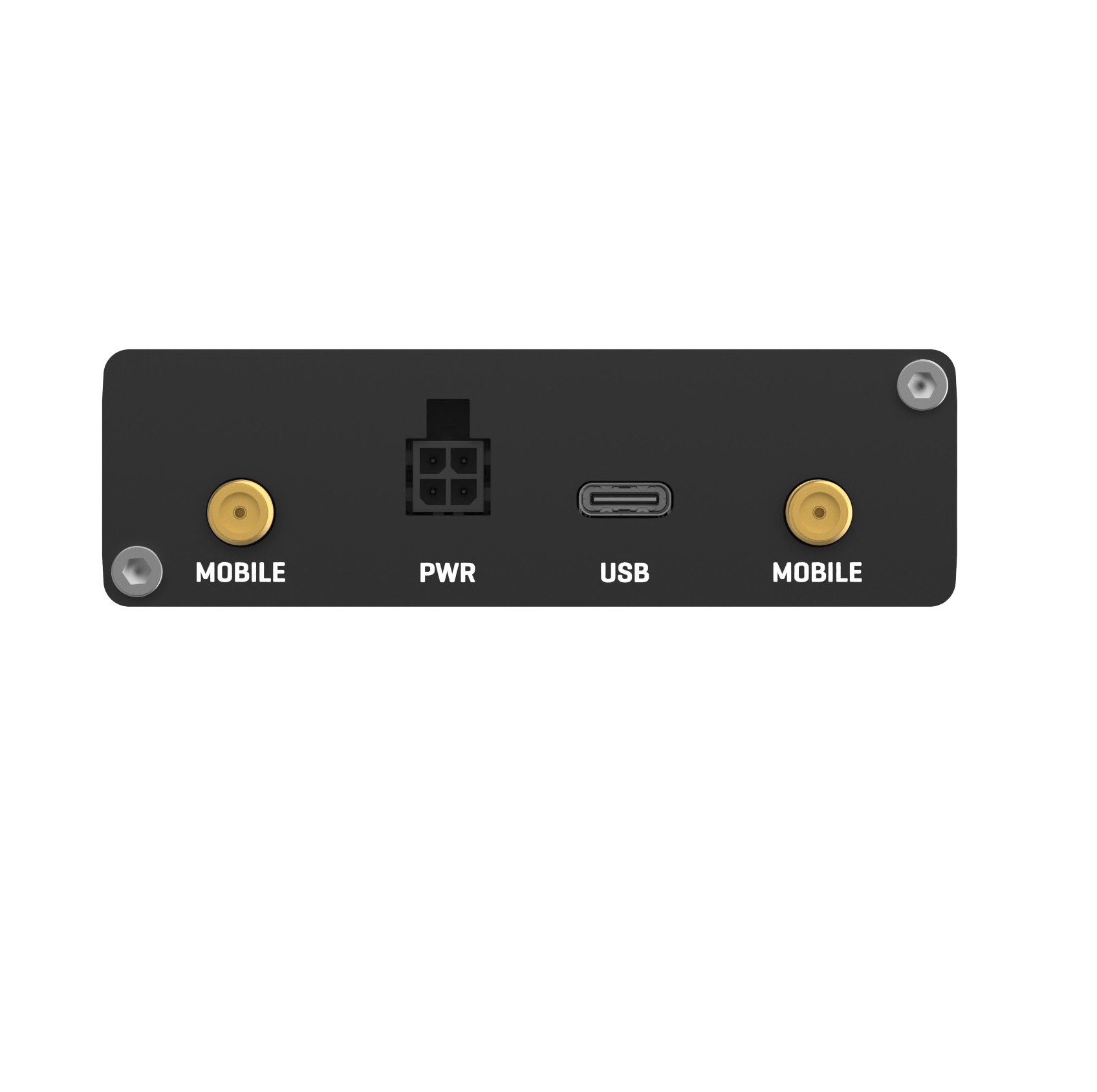

1 x 4-pin power connector

1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

4 x SMA for Mobile

1 x Virtual network interface via USB Type-C (For power and network data)

Anodized aluminum housing and panels

83 x 25 x 85.4 mm

94.5 g

DIN rail, wall mount, flat surface (all require additional kit)

-40 °C to 75 °C

10% to 90% non-condensing

IP30

Windows Connection Manager, Modem Manager (Linux)

Windows 7/8/8.1/10/11,Linux 2.6~6.3,Android 4.x ~ 13

Android 4.x ~ 13

Android 4.x ~ 13

Windows 7/8/8.1/10/11

Windows 8/8.1/10/11, Linux 3.18~6.3

Linux 2.6/3.x/4.1~4.14

Linux 3.4~6.3

WEE

EN 55032:2015+A1:2020

EN 55035:2017+A11:2020

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 301 489-1 V2.2.3

EN 301 489-52 V1.2.1

AS/NZS CISPR 32:2015+A1:2020

EN 61000-4-2:2009

EN IEC 61000-4-3:2020

EN 61000-4-4:2012

EN 61000-4-5:2014+A1:2017

EN 61000-4-6:2014

EN 61000-4-11:2020

EN 301 908-1 V15.2.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.2.1

EN 301 908-25 V15.1.1

AS/CA S042.1:2022

AS/CA S042.4:2022

AS/CA S042.5:2022+A1:2022

FCC Part 22

EN IEC 62311:2020

EN IEC 62368-1:2018
