ETHERNET |
|
WAN |
1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover |
|
LAN |
4 x LAN ports (can be configured as secondary WAN ports), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover |
|
NETWORK |
|
Routing |
Static routes, Dynamic routes |
|
Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
|
VoIP passthrough support |
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
|
Connection monitoring |
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall |
Port forwards, traffic rules, NAT rules, custom rules |
|
DHCP |
Static and dynamic IP allocation, DHCP Relay |
|
QoS / Smart Queue Management (SQM) |
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
DDNS |
Supported >25 service providers, others can be configured manually |
|
Network backup |
Wired WAN options, each of which can be used as an automatic Failover |
|
Load balancing |
Balance Internet traffic over multiple WAN connections |
|
SSHFS |
Possibility to mount remote file system via SSH protocol |
|
SECURITY |
|
Authentication |
Pre-shared key, digital certificates, X.509 certificates |
|
Firewall |
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
|
Attack prevention |
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
VLAN |
Port and tag based VLAN separation |
|
WEB filter |
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
|
Access control |
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN |
|
OpenVPN |
Multiple clients and a server can run simultaneously, 12 encryption methods |
|
OpenVPN Encryption |
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
IPSec |
IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
|
GRE |
GRE tunnel |
|
PPTP, L2TP |
Client/Server instances can run simultaneously, L2TPv3 support |
|
Stunnel |
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
|
DMVPN |
Method of building scalable IPsec VPNs |
|
SSTP |
SSTP client instance support |
|
ZeroTier |
ZeroTier VPN client support |
|
WireGuard |
WireGuard VPN client and server support |
|
MODBUS |
|
MODBUS TCP SLAVE |
|
ID filtering |
Respond to one ID in range [1;255] or any |
|
Allow remote access |
Allow access through WAN |
|
Custom registers |
MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality |
|
MODBUS TCP MASTER |
|
Supported functions |
01, 02, 03, 04, 05, 06, 15, 16 |
|
Supported data formats |
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
|
MQTT GATEWAY |
|
Gateway |
Allows sending commands and receiving data from MODBUS Master through the MQTT broker |
|
DNP3 |
|
Supported modes |
TCP Master, DNP3 Outstation |
|
DATA TO SERVER |
|
Protocols |
HTTP(S), MQTT, Azure MQTT, Kinesis |
|
MONITORING & MANAGEMENT |
|
WEB UI |
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
|
FOTA |
Firmware update from server, automatic notification |
|
SSH |
SSH (v1, v2) |
|
TR-069 |
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
|
MQTT |
MQTT Broker, MQTT publisher |
|
SNMP |
SNMP (v1, v2, v3), SNMP trap |
|
JSON-RPC |
Management API over HTTP/HTTPS |
|
MODBUS |
MODBUS TCP status/control |
|
RMS |
Teltonika Remote Management System (RMS) |
|
SYSTEM CHARACTERISTICS |
|
CPU |
QCA9531, MIPS 24kc, 650 MHz |
|
RAM |
64 MB, DDR2 |
|
FLASH storage |
16 MB, SPI Flash |
|
FIRMWARE / CONFIGURATION |
|
WEB UI |
Update FW from file, check FW on server, configuration profiles, configuration backup |
|
FOTA |
Update FW/configuration from server |
|
RMS |
Update FW/configuration for multiple devices at once |
|
Keep settings |
Update FW without losing current configuration |
|
USB |
|
Data rate |
USB 2.0 |
|
Applications |
Samba share, USB-to-serial |
|
External devices |
Possibility to connect external HDD, flash drive, printer |
|
Storage formats |
FAT, FAT32, NTFS |
|
INPUT/OUTPUT |
|
Configurable I/O |
2 x Configurable digital Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA |
|
Events |
Email, RMS |
|
I/O juggler |
Allows to set certain I/O conditions to initiate event |
|
POWER |
|
Connector |
4 pin industrial DC power socket |
|
Input voltage range |
7 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
|
PoE (passive) |
Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
|
Power consumption |
Idle: 1.3 W, Max: 3 W |
|
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) |
|

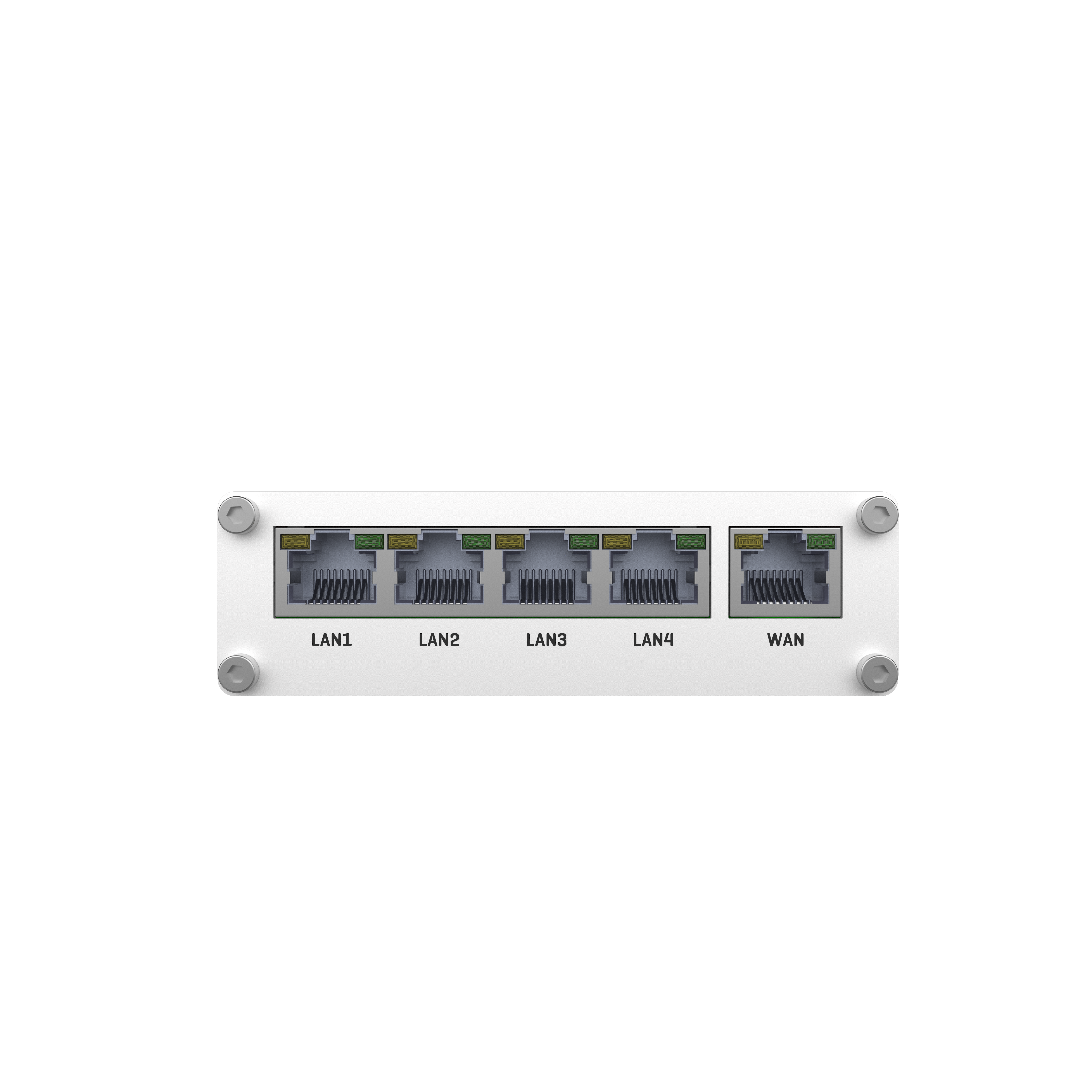

Ethernet |
5 x RJ45 ports, 10/100 Mbps |
|
I/Os |
2 x Configurable digital Inputs/Outputs on 4 pin power connector |
|
Status LEDs |
5 x ETH status, 1 x Power |
|

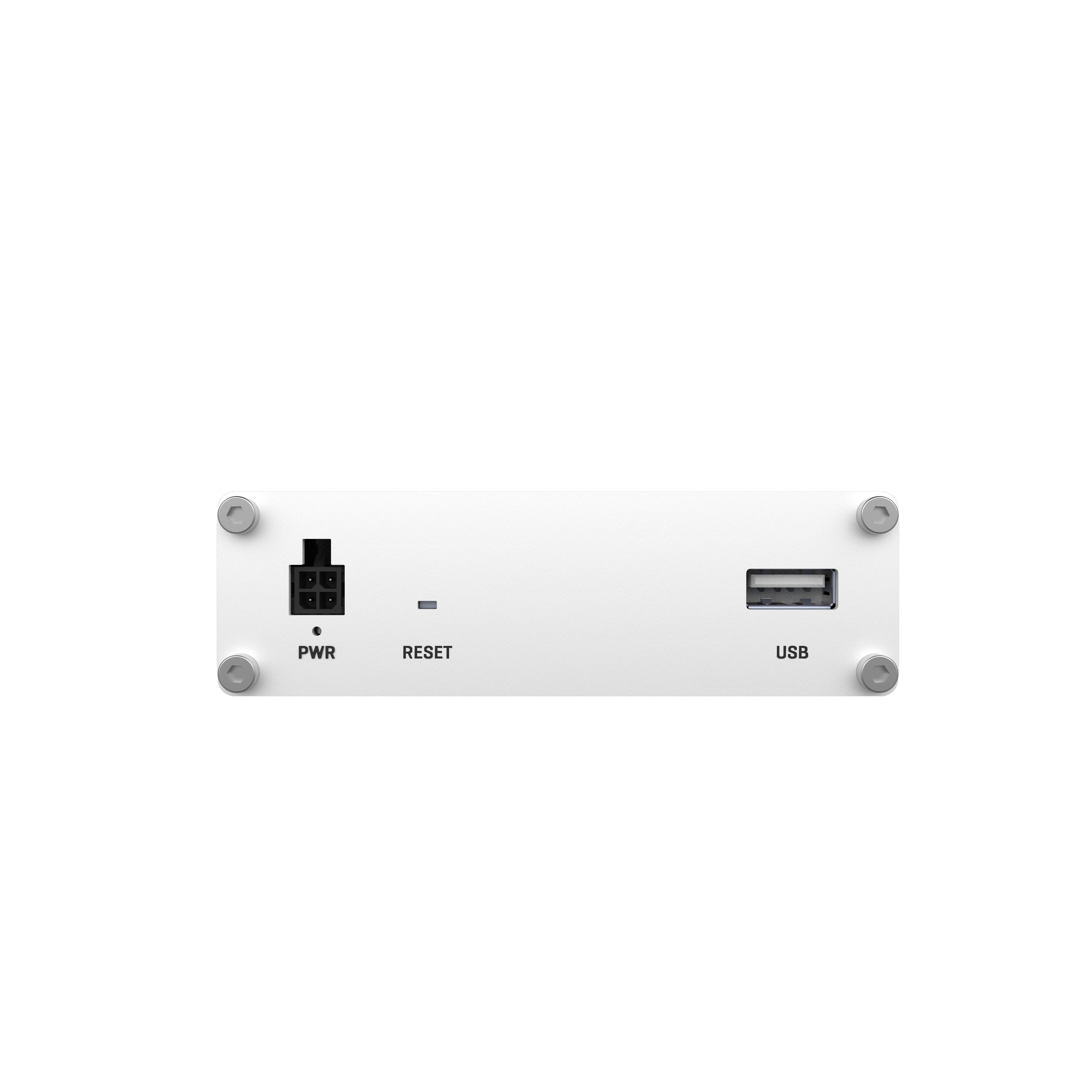

Power |
1 x 4 pin DC connector |
|
USB |
1 x USB A port for external devices |
|
Reset |
Reboot/User default reset/Factory reset button |
|

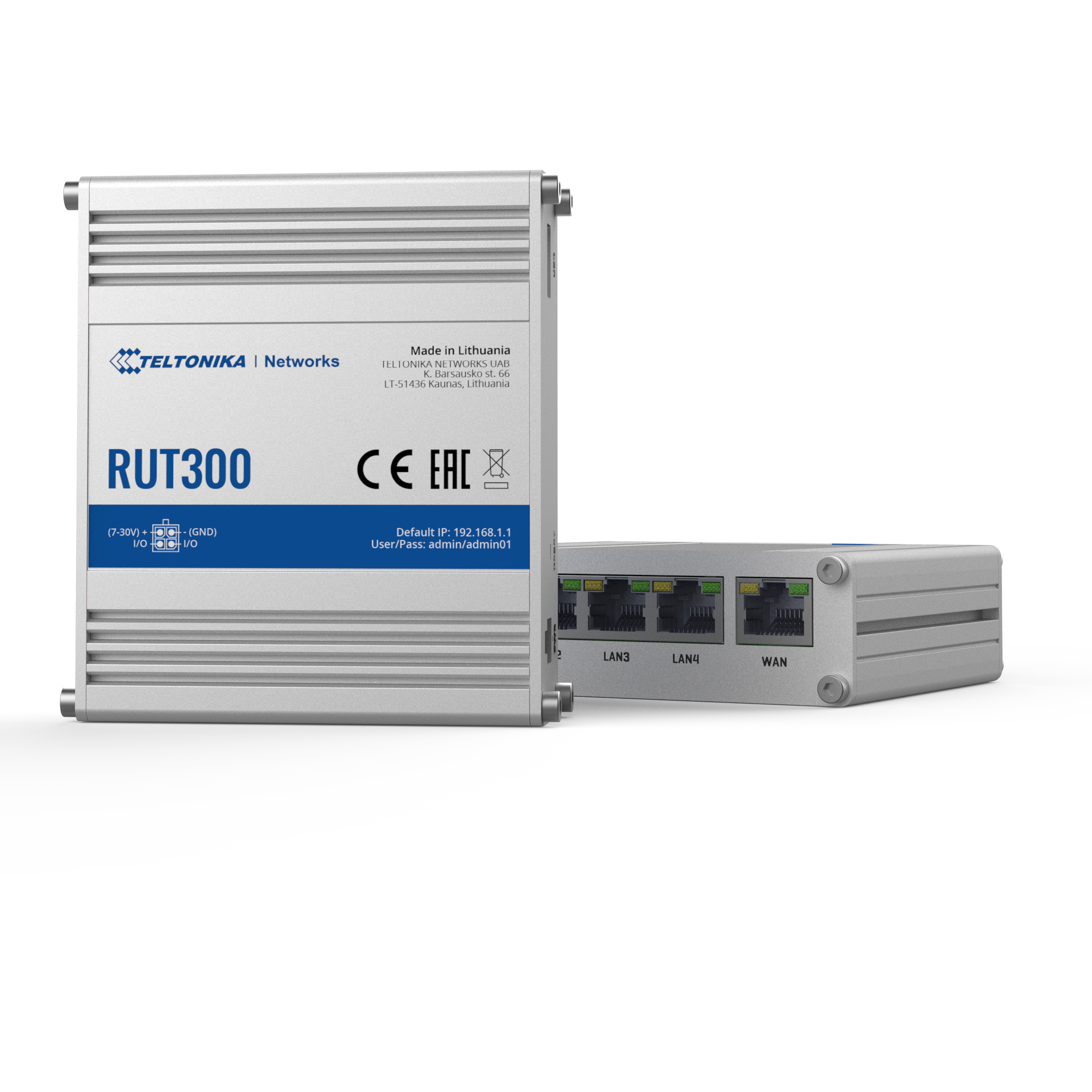

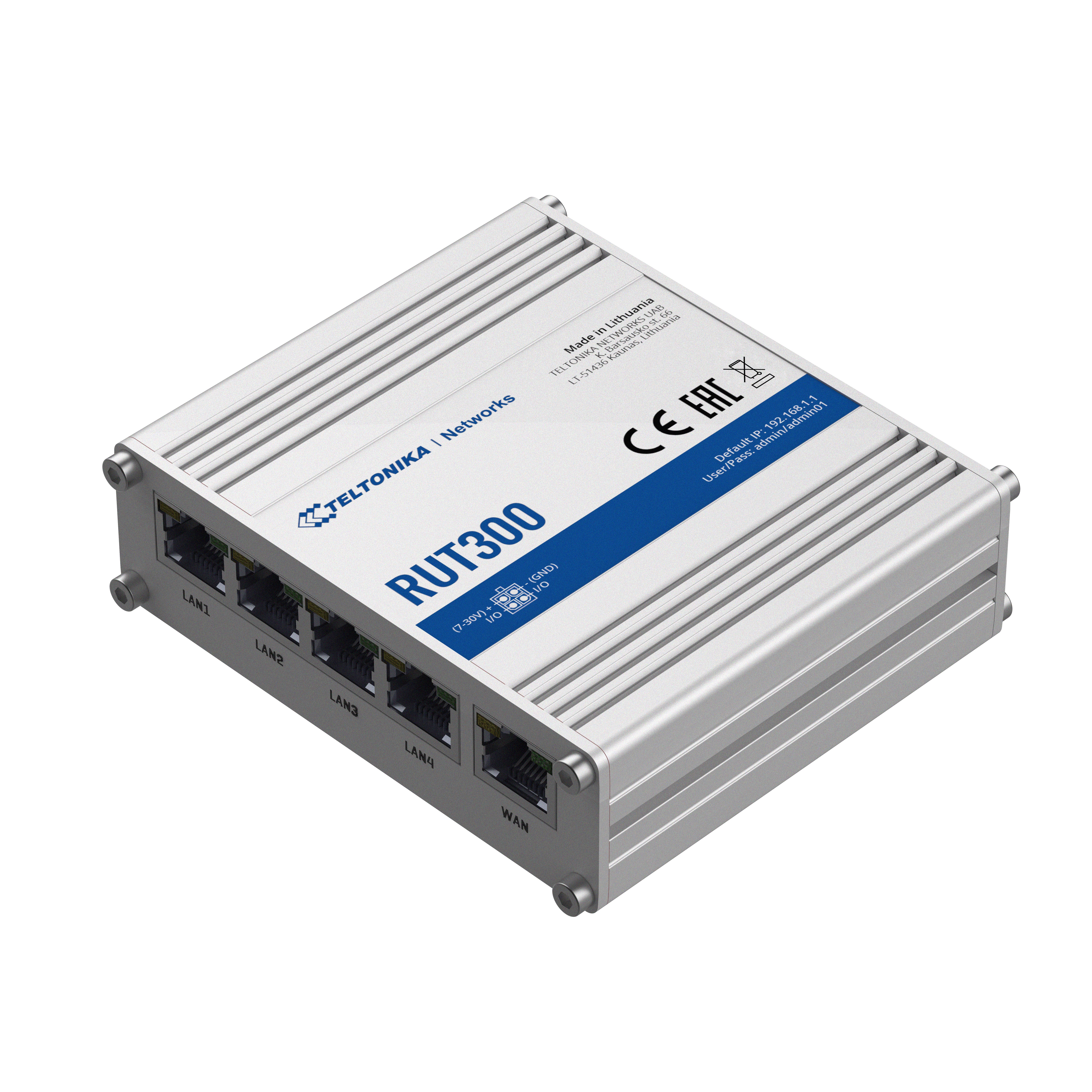

PHYSICAL SPECIFICATION |
|
Casing material |
Aluminium housing with DIN rail mounting option |
|
Dimensions (W x H x D) |
100 x 30 x 85 mm |
|
Weight |
229 g |
|
Mounting options |
DIN rail, flat surface placement |
|
OPERATING ENVIRONMENT |
|
Operating temperature |
-40 C to 75 C |
|
Operating humidity |
10 % to 90 % non-condensing |
|
DIP |
EN 61000-4-11:2004 |
