9 288,00 ₴

Артикул:

639

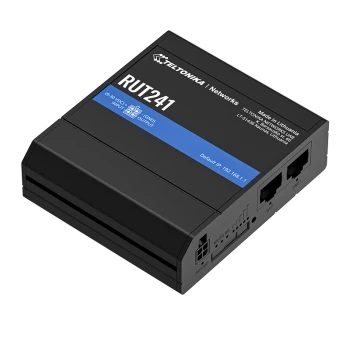

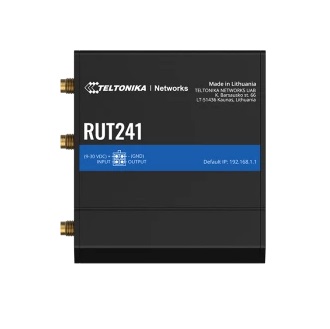

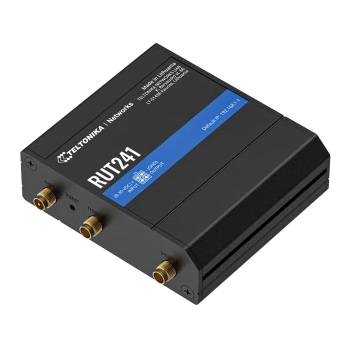

RUT241 оснащений 4G LTE, Wi-Fi і двома портами Ethernet, забезпечує безперервне з’єднання з автоматичним перемиканням WAN. Промисловий дизайн, компактний розмір, кілька інтерфейсів підключення та сумісність із RMS роблять цей пристрій чудовим додатком до багатьох рішень IoT та M2M.

Комплект постачання:

Маршрутизатор RUT241

Блок живлення 9В 1А

2 x LTE антени (компактна, поворотна, SMA male)

1 x WiFi антена (виносна, 1,5м., магнітна основа, RP-SMA male)

Патч-корд Ethernet 1,5м.

Адаптери SIM карт (nano-SIM, micro-SIM)

QSG (керывництво - швидкий старт)

RMS вкладиш

Пакувальна коробка

Stuff

Зображення

Техничні характеристики

MOBILE

Mobile module

4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
3GPP Release

Release 10/11 depending on the hardware version
Status

Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD

Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list

Operator black/white list
Multiple PDN

Possibility to use different PDNs for multiple network access and services
Band management

Band lock, Used band status display
APN

Auto APN
Bridge

Direct connection (bridge) between mobile ISP and device on LAN
Passthrough

Router assigns its mobile WAN IP address to another device on LAN

WIRELESS

Wireless mode

IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Wi-Fi security

WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID

SSID stealth mode and access control based on MAC address
Wi-Fi users

Up to 50 simultaneous connections
Wireless Hotspot

Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
Wireless Connectivity Features

Fast roaming (802.11r), Relayd
Wireless MAC filter

Whitelist, blacklist

ETHERNET

WAN

1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN

1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORK

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall

Port forward, traffic rules, custom rules
DHCP

Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS

Supported >25 service providers, others can be configured manually
Network backup

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing

Balance Internet traffic over multiple WAN connections
SSHFS

Possibility to mount remote file system via SSH protocol

SECURITY

Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
Firewall

Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN

Port and tag-based VLAN separation
Mobile quota control

Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control

Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec

IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE

GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN

Method of building scalable IPsec VPNs
SSTP

SSTP client instance support
ZeroTier

ZeroTier VPN client support
WireGuard

WireGuard VPN client and server support
Tinc

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

MODBUS TCP SLAVE

ID range

Respond to one ID in range [1;255] or any
Allow Remote Access

Allow access through WAN
Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER

Supported functions

01, 02, 03, 04, 05, 06, 15, 16
Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

DATA TO SERVER

Protocol

HTTP(S), MQTT, Azure MQTT, Kinesis

MQTT GATEWAY

MQTT Gateway

Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

Supported modes

TCP Master, DNP3 Outstation

MONITORING & MANAGEMENT

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA

Firmware update from server, automatic notification
SSH

SSH (v1, v2)
SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT

MQTT Broker, MQTT publisher
SNMP

SNMP (v1, v2, v3), SNMP Trap
JSON-RPC

Management API over HTTP/HTTPS
MODBUS

MODBUS TCP status/control
RMS

Teltonika Remote Management System (RMS)

IOT PLATFORMS

Cloud of Things

Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub

Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

CPU

Mediatek, 580 MHz, MIPS 24KEc
RAM

128 MB, DDR2
FLASH storage

16 MB, SPI Flash

FIRMWARE / CONFIGURATION

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA

Update FW
RMS

Update FW/configuration for multiple devices at once
Keep settings

Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system

RutOS (OpenWrt based Linux OS)
Supported languages

Busybox shell, Lua, C, C++
Development tools

SDK package with build environment provided

INPUT / OUTPUT

Input

1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output

1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events

Email, RMS, SMS
I/O juggler

Allows to set certain I/O conditions to initiate event

POWER

Connector

4-pin industrial DC power socket
Input voltage range

9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive)

Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption

< 6.5 W Max

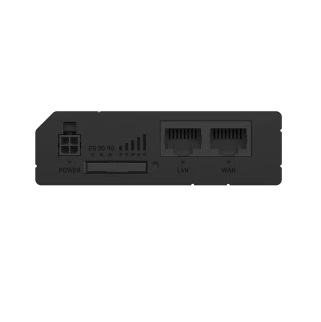

PHYSICAL INTERFACES

Ethernet

2 x RJ45 ports, 10/100 Mbps
I/O’s

1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs

3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM

1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power

1 x 4-pin power connector
Antennas

2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
Reset

Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION

Casing material

Aluminium housing, plastic panels
Dimensions (W x H x D)

83 x 25 x 74 mm
Weight

125 g
Mounting options

Bottom and sideways DIN rail mounting slots

OPERATING ENVIRONMENT

Operating temperature

-40 °C to 75 °C
Operating humidity

10% to 90% non-condensing
Ingress Protection Rating

IP30

REGULATORY & TYPE APPROVALS

Regulatory

CE/RED, UKCA, CB

EMC EMISSIONS & IMMUNITY

IMMUNITY Standards

EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 Final draft EN 301 489-52 V1.2.0 EN 55032:2015+A1:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019 EN IEC 61000-3-2:2019
ESD

EN 61000-4-2:2009
RS

EN 61000-4-3:2020
EFT

EN 61000-4-4:2012
Surge immunity (AC Power Line)

EN 61000-4-5:2014+A1:2017
CS

EN 61000-4-6:2014
DIP

EN IEC 61000-4-11:2020

Standards

EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1

SAFETY

Standards

EN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018

Завантаження

Додаткові файли:

rut241-datasheet-v12.pdf

rut241-flyer-2023-v10.pdf
