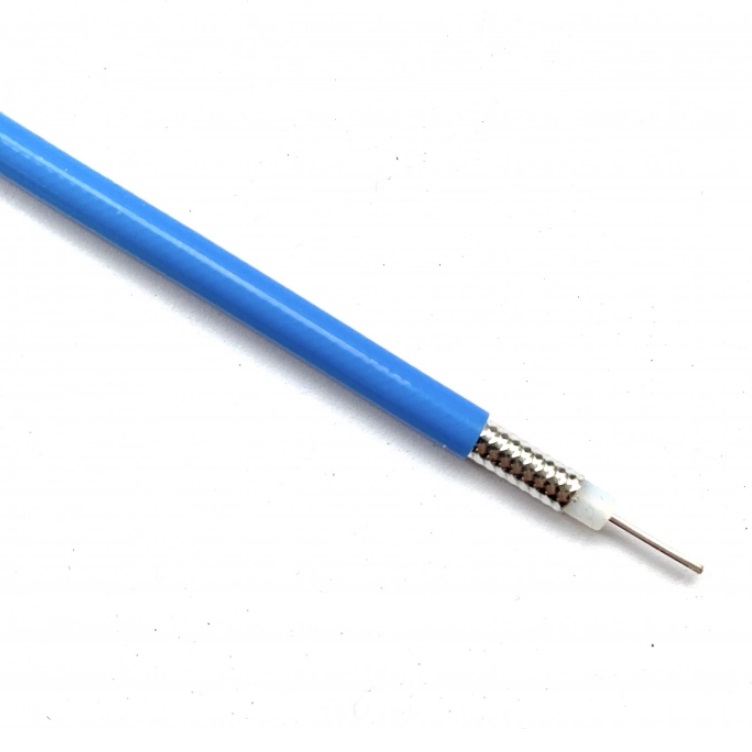

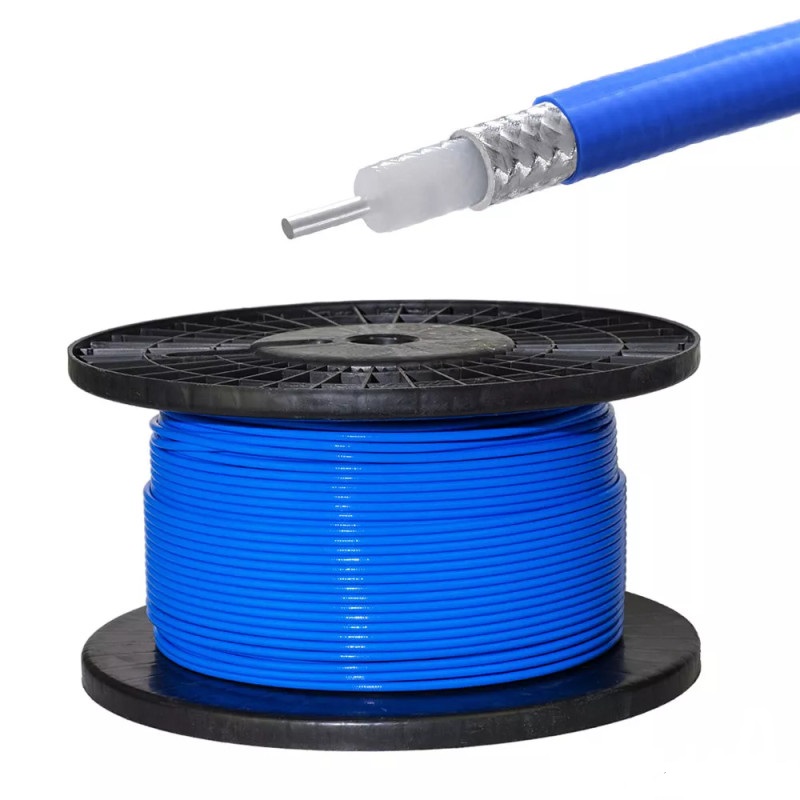

Коаксіальний кабель 670-141SXE напівгнучкий Ø4.15 мм / Втрати на частоті 2600 МГц – 0,7 дБ/м / Втрати на частоті 6000 МГц – 1,15 дБ/м
Construction Specification
Item |
Material |
Diameter(mm) |
1. Inner Conductor |
Silver Plated Copper |
0.93 |
2. Dielectric |
PTFE |
3.00 |
3. Outer Conductor |
PTFE |
3.52 |
4. Jacket |
FEP |
4.15 |
Electrical Characteristic
Capacitance(pF/m) |
95.1 |
Impedance(ohm) |
50 |
Velocity of Propagation(%) |
70 |
Cutoff frequency(GHz) |
34 |
Time Delay(ns/m) |
4.7 |
Shielding Effectiveness up to 18GHz (dB) |
100 |
Mechanical Characteristic
Min. Bending Radius Static(mm) |
|
8 |
Min. Bending Radius Repeated(mm) |
|
40 |
Operating Temp.(℃) |
FEP |
-65 to +200 |
Attenuation & Average Power @ 20℃ at Sea Level
Frequency(GHz) |
Attenuation(dB/m) |
Power(CW) |
0.5 |
0.26 |
436.5 |
1.0 |
0.39 |
303.4 |
3.0 |
0.84 |
169.0 |
5.0 |
0.92 |
126.7 |
10.0 |
1.38 |
85.5 |
20.0 |
2.10 |
56.1 |
